Thuis /Producten/Glasbuigoven/Architectures Furniture Household Appliance Laminated Furnace For Architecture Glass Production

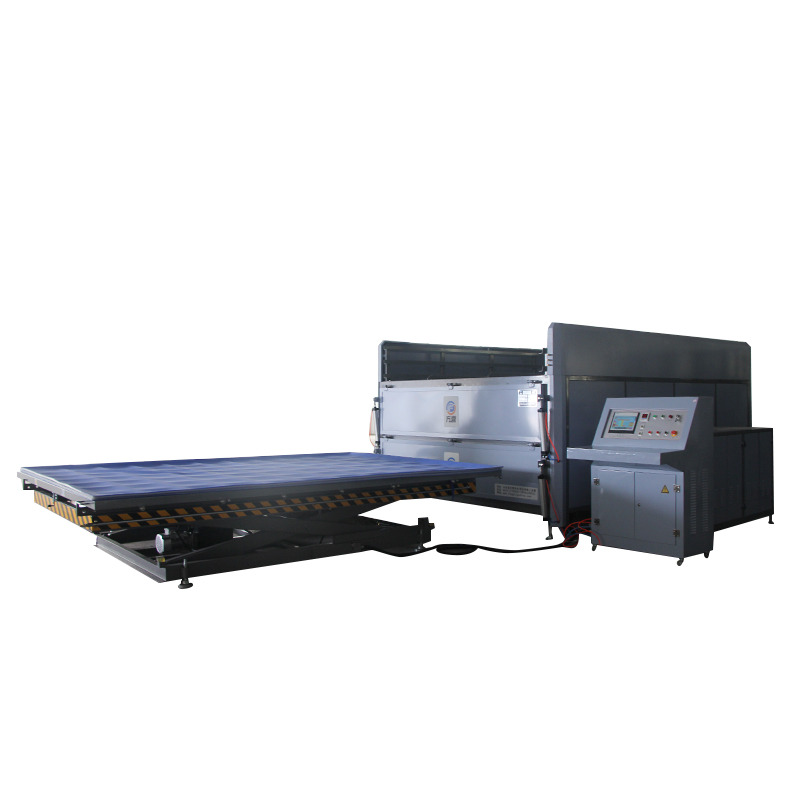

Architectures Furniture Household Appliance Laminated Furnace For Architecture Glass Production

1 set
MOQ
Architectures Furniture Household Appliance Laminated Furnace For Architecture Glass Production
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Manufacturing Plant, Construction works , Glass processing industry
Showroom Location: India
Condition: New
Machine Type: Glass Laminating Machine
Production Capacity: 107 sqm/cycle
Voltage: 220-440V
Power: 73KW
Dimension(L*W*H): Depending on the models
Weight: According to the types
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 2-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, PLC, Pump
Name: Laminated furnace for architecture glass production
Product name: EVA glass laminating machine
Application: Architectures Furniture Household Appliance
Function: Produce EVA Film Laminated Glass
Max glass size: 2440x3660mm
Control system: PLC
Heating method: Forced Convection
Operation: Automatic Control
Processable glass type: Normal Glass
Advantage: Lower Installed Power
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: India
Certificering: CE 3C ISO
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Basis informatie
Certificering: CE 3C ISO
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading
Supply Ability: 30 Set/Sets per Month
Productomschrijving
Product Overview

4-Layer glass lamination machine with double system

4 layers double independent system machine.
Mainly working system includes cooling, heating, vacuum, PLC, glass lifting table.

Double independent system:
*laminating two different kinds of glass at the same time.
* Independent heating up and down, floor heating distribution, modular control, strong convection circulation of turbine fans.
* A number of patented technologies. The heating system uses a turbine fan and a high-density explosion-proof stainless steel electric heating rod for heating. It is equipped with a temperature sensing device, a modular area heating control, intelligent self-adjusting temperature, fast heating, temperature balance, and strong turbo fan.
* Convection circulation to ensure no temperature difference in the furnace.
* The insulation system adopts seamless processing to minimize heat loss. Compared with similar products and equipment, it can save energy by more than 30%.
* High-performance vacuum system with automatic vacuum pressure holding, stable working around the clock, improving product efficiency and quality.
* Elevator lifting system, efficient and stable operation, mature technology.
* 99% pass rate
* 50% energy saving
* High efficiency
* PLC control, Simple to operate
* High quality spare parts
* EVA/TPU/SGP film as interlayer
* Rich range of products
* Large size bending glass processing
* No waste when suddenly power off
* Free home installation and training

Right elevation
Left elevation
Front elevation
Specification
item
value
Model
FD-J-5-4
Machine Type
Glass Laminating Machine
Max. Glass size
2440*3660mm*4-layer
Production Capacity
107 sqm/cycle
Place of Origin
Shandong, China
Voltage
220/380/440V, can be customized
Power
73KW
Dimension(L*W*H)
2965*4600*2150mm
Floor space
4520*10500mm
Weight
4300kg
Certification
CE, CSA,UL
Warranty
1 Year
After-sale service
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
Glass Thickness
3-19mm
Marketing Type
New Product
Warranty of core components
1 Year
Core Components
Motor, PLC, Pump
Product name
EVA Glass Laminating Machine
Operating temperature
90-140℃
Control system
PLC(Siemens)
PLC
Siemens Brand
Heating method
Forced Convection Circulation
Operation
Automatic Control
Processable glass type
Float/tempered/bending Glass
Company & Exhibition
Fangding Technology Co., Ltd
It is a high-tech enterprise which was founded in October 2003, located in Rizhao city, Shandong, covering an area of more than 20,000 square meters, specializing in developing, manufacturing and selling the laminated glass equipment and the interlayer films, the main products are EVA laminated glass machine, Heat Soak Furnace, Smart PVB glass laminating line and EVA,TPU,SGP films.

On-site processing of laminated glass at the exhibition

The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions.
During the exhibition, through the on-site processing of the laminated glass, Fangding presented its unique design style and manufacturing process to the customers!
PRODUCT CONFIGURATION
FANGDING brand long life vacuum pump
Automatic rapid cooling system
Intelligent Siemens PLC control cabinet
Elevator type one-key lifting system
All wires are externally connected, easy to install and maintain
304 stainless steel heating pipes are evenly distributed
Packing & Delivery
Wrapped with moisture proof film Wooden case suitable for container loading
Successful Project
German exhibition site processing
Two sets machines in USA
Installation and training in Australia
Installation and commissioning in Ukraine
Samples finished in China
Two machines in Mexico
Standard specifications
Application
Laminated glass applications
Outdoor architecture glass and indoor decorative glass, including glass wall, ordinary float laminated glass, curved laminated glass, tempered laminated glass, high-level office building, furniture, church, villa, wall windowpane, tabletop, craft glass, colored laminated glass, LED glass, smart glass, bullet-proof glass, multi-layer laminated glass, laminated silk glass, household appliances panel glass, glass corner, background wall and video wall glass, coffee table surface glass, partition screen, frameless painting laminated glass and personalized portrait glass etc.
SIMILAR PRODUCTS
FAQ
Q: Could your machines laminate bent tempered glass?
A: Yes. Our machines can laminate large-size bent tempered glass in one step, which is very easy to operate.
Q: How many stages your machines can set?
A: Normally we set 3 stages. It can be customized for you to 5 stages if needed.
Q: When will your machine ready for delivery after our prepayment?
A: Normally within in 30 days after receiving prepayment.
Q: What about the terms of payment?
A: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Does your machine have any certifications?
A: Yes, we do. Our machine have got CE certificate of European union, ISO9001 management system certificate. TUV certificate of Germany, PC certificate for Saudi Arabia, CSA certificate of Canada and so on.
Q: Could the laminated glass used for exterior?
A: Yes. The laminated glass with super clear EVA can be totally used for exterior.
Q: How to operate the machine? Is it difficult?
A: No, our machine is very easy to operate. The machine will work automatically after you setting the parameters through the PLC touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
