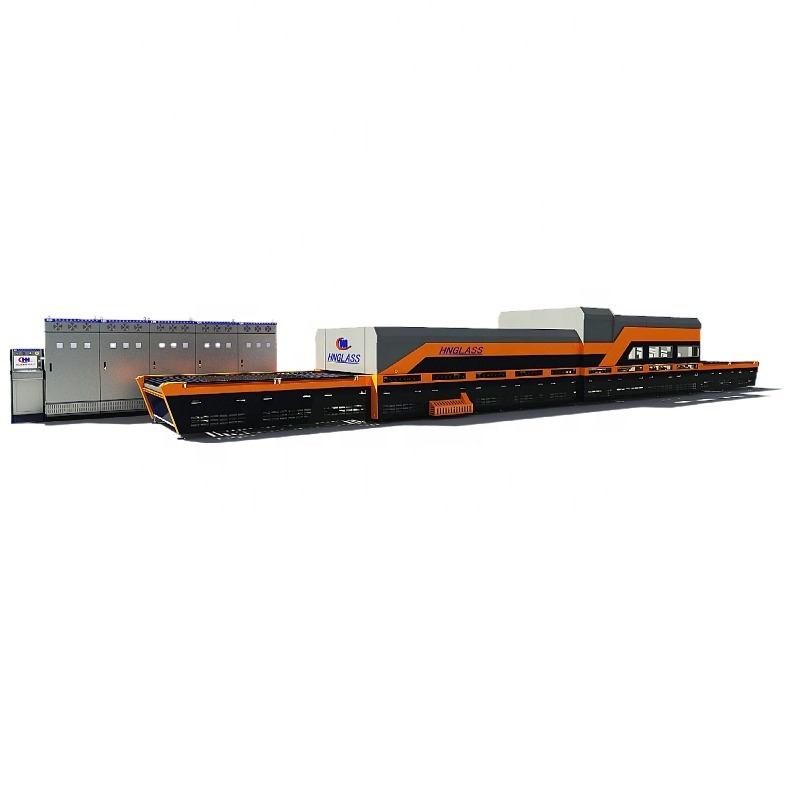

Factory Continuous High Productivity Glass Tempering Furnace

1.0 set
MOQ
Factory Continuous High Productivity Glass Tempering Furnace
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Manufacturing Plant, Construction works , glass processing industry
Showroom Location: Turkey, Saudi Arabia
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 240m2/h
Voltage: 220/380/440V
Power: Different by types, 1200Kw
Dimension(L*W*H): Depending on the models
Weight: kg
Warranty: 2 years
Key Selling Points: Energy saving
Glass Thickness: 4-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: PLC
Heating Section: coninuous
glass thickness: 2.85-12mm
Local Service Location: UAE
installation: Field installation, commissioning and training
After sales Service Provided: engineer all year in Saudi Arab
Certificering: CE 3C ISO
Basis informatie
Certificering: CE 3C ISO
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard Packing
Supply Ability: 50 Set/Sets per Year
Productomschrijving
Product Description
Working Factory
More than 30,000 Square meter working factory. Capacity: more than 50set per year
Product Paramenters
Model Number
HN1020L
Max Glass Size
1000x2000mm
Min Glass Size
100x250mm
Glass Thickness
2.85-8mm
Heating Section
continuous
Productivity
240m2/hour
Transformer
1400KVA
Dimension
45000x2000x2500mm
Specification
Model
Max Glass Size
mm
Min Glass Size
mm
Glass Thickness
mm
Productivity
(M2/hour)
Installation Power
KW
HN0620L
600x2000
100 x 150
2.85-8
130
1000
HN1020L
1000×2000
100×200
2.85-8
240
1400
HN1225L
1200×2500
100×250
3-12
380
1600
HN1725L
1700×2500
100×300
3-12
550
2000
Company Profile
Glass Can Be Tempered: Solar Pannel glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc

Features of the Double chamber glass tempering furnace.

1.Better glass quality, no oscillation which can reduce the waveness of the glass .   2. Long heating section can make the glass to be heated from low temperature to high temperature, so as to be very good quality.   3. Easy operation which can save a lot of time and increase the production capacity.

Advantage:

1.Quality of our product 1.1 Low-E valve can be 0.01. 1.2 The Flatness:1.2‰. 1.3 Wave degree:0.08% 1.4 Wind spots: 20pieces of glass folded. 1.5 The breakage rate for 5mm: 80pcs/5 cm2
2. The stability features of our machine 2.1. Our components are proven for long service life-time. Example for that: heating elements, thermocouples, insulation material, electrical elements and convection system. And so, we are able to give a 5 years guarantee for some components including PLC, inverter. 2.2. We have AC battery for emergency driving system. In case of power cut, then the UPS can provide the needed power to finish the current batch. This is also a protection for the machine. 3..Energy Saving 3.1. 200-300 KVA can be saved. 3.2. Thanks to the passing section, that insure a higher quality tempered glass, with high energy saving. 3.3. Thicker insulation material which can prevent heat lost. 3.4.Turbo Blower convection system can save more than 40000kwh per year. 3.5 Turbo blower convection can reach better effect compared with compressed air. 3.6. SS cover above the heating wires to protect the heating system in case of glass breakage.

Bi-Directtion Flat & Bent Glass Tempering Furnace

Flat Glass Tempering Furnace

Double chamber Glass Tempering Furnace

Convection Heating Glass Tempering Furnace

Soft Roller Length Bending Glass Tempering Furnace

Mould Bending/Car glass Tempering Furnace
